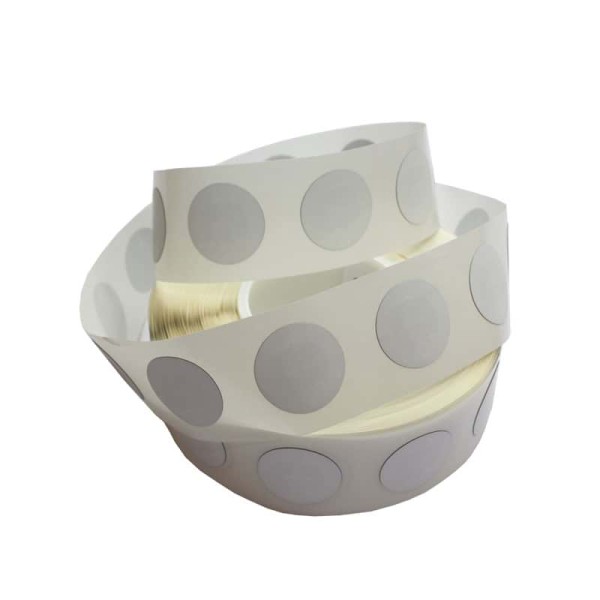

RFID Wet Inlay

Email: marketing@asiarfid.com Call us: +(86) 755 2697 9016

Product Code: xyt-118

Ask For Price

1 reviews | Write a review

RFID Wet Inlay

RFID Wet Inlay Descriptions

Inlay products are suited for a variety of Cards producing. RFID Wet Inlay is covered with different printing materials up and down, becoming colorful contactless Cards by being laminated again.
RFID Inlay is a special term in the smart card industry, referring to a kind beforehand laminated products with multi-layer PVC sheets containing chip and wire circle together. And RFID Wet Inlay is a die-cut web with adhesive.

Low Frequency, High Frequency is all ok.

Our Inlay are covered in the surface material to form the final label. These are some materials:

1. Coated Paper: Low cost, easy to print on.
2. PET: Waterproof, heatproof, environmental protection.
3. PVC: Waterproof, corrosion resistance, high-temperature resistance.
4. Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.
5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.
6. Electrostatic adhesive: Electrostatic prevention, high-temperature resistance, strong water resistance

For die-cutting, the minimum size should be 4mm bigger than inlay normally.

Parameters
Material	Paper
Size	310mm468mm,400mm55mm, 490mm650mm, the smallest one:210mm297mm, the biggest one:650mm*490mm
Shipping Details	Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping, 18 days for sea shipping.
Payment Terms	TT, PayPal, WEST UNION, L/C

Common Chip Types	Protocol	Capacity	Anti-collision	Function
Available 125KHz Chip
TK4100	/	64 bits	No	Read Only
EM4200	/	128 bits	No	Read Only
EM4305	/	512 bits	No	Read/Write
T5577	/	330 bits	No	Read/Write
Available 13.56MHz Chip
Ntag213	ISO14443A	180 byte	No	Read/Write
Ntag215	ISO14443A	540 byte	No	Read/Write
Ntag216	ISO14443A	924 byte	No	Read/Write
MF Classic 1K	ISO14443A	1KB	No	Read/Write
MF Classic 4K	ISO14443A	4KB	No	Read/Write
MF Plus S 1K	ISO14443A	2KB/4KB	No	Read/Write
MF Ultralight EV1	ISO14443A	48 byte	No	Read/Write
MF Ultralight C	ISO14443A	144 byte	No	Read/Write
ICODE SLIX	ISO15693	1024 bits	Yes	Read/Write
Available 860-960MHz Chip
Alien H3	ISO18000-6C	512 bits	Yes	Read/Write
Other chips are also available.
Ntag are registered trademarks of and are used under license.ICODE are registered trademarks of and are used under license.MF and MF Classic are trademarks of MF and MF Ultralight are registered trademarks of and are used under license.MF and MF Plus have registered trademarks of and are used under license.

Product Details

tag details

Common Package

tag package

Note:

Volume

1000pcs/ 2000pcs/ 5000pcs in one roll,
10,000pcs/ 50,000pcs/ 100,000pcs per carton

Weight

About 2KG for 1000 pcs

Carton Size

49*23*20 cm
49*23*26 cm
Special demands for packing available.

Applications

tag applications

Available Applications:

virtually on any surface, metal, plastic, wood, paper, used for animal tracking, library management, mobile phone payment, anti-fake wine management, etc.
