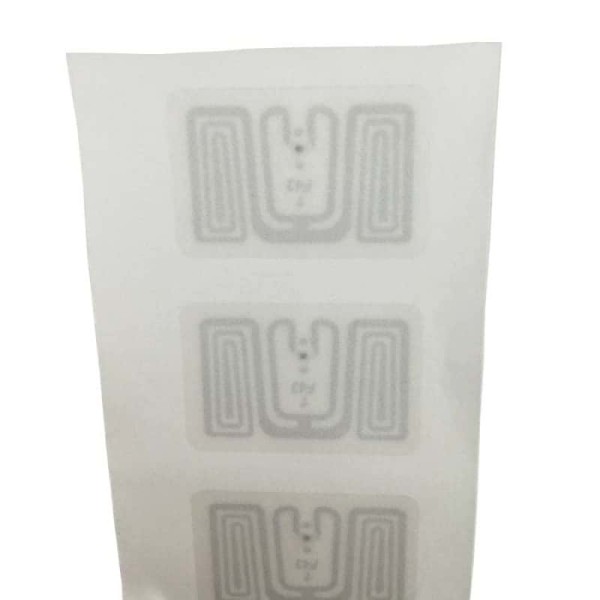

Paper Material Monza 4E UHF RFID Sticker
Paper Material Monza 4E UHF RFID Sticker
Basic Feature
Monza 4E chip: EPC Class1 Gen2 chip with up to 496bit EPC memory, 128 bit user memory and 96bit serialized TID, Paper UHF RFID sticker can be printed by thermal transfer printer.
Our Inlay is covered in the surface material to form the final label. These are some materials:
1. Coated Paper: Low cost, easy to print on.
2. PET: Waterproof, heatproof, environmental protection.
3. PVC: Waterproof, corrosion resistance, high-temperature resistance.
4. Normal Double-sided adhesive: Robust, widely Monza 4QTsed, and cheaper than 3M Glue.
5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.
6. Electrostatic adhesive: Electrostatic prevention, high-temperature resistance, strong water resistance
For die-cutting, the minimum size should be 4mm bigger than inlay normally.
| Parameters | |
| Material | Paper |
| Size | 26*16mm |
| Chip | Monza 4E |
| Frequency | 860~960MHz |
| Memory | up to 496bit EPC memory, 128 bit user memory and 96bit serialized TID |
| Reading distance | 0~ 4 meter |
| Crafts Available | Number/EPC Printing, EPC/Password Data encoding |
| Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping, 18 days for sea shipping. |
| Payment Terms | TT, PayPal, WEST UNION, L/C |
| Common Chip Types | Protocol | Capacity | Anti-collision | Function |
| Available 125KHz Chip | ||||
| TK4100 | / | 64 bits | No | Read Only |
| EM4200 | / | 128 bits | No | Read Only |
| EM4305 | / | 512 bits | No | Read/Write |
| T5577 | / | 330 bits | No | Read/Write |
| Available 13.56MHz Chip | ||||
| Ntag213 | ISO14443A | 180 byte | No | Read/Write |
| Ntag215 | ISO14443A | 540 byte | No | Read/Write |
| Ntag216 | ISO14443A | 924 byte | No | Read/Write |
| MF Classic 1K | ISO14443A | 1KB | No | Read/Write |
| MF Classic 4K | ISO14443A | 4KB | No | Read/Write |
| MF Plus S 1K | ISO14443A | 2KB/4KB | No | Read/Write |
| MF Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
| MF Ultralight C | ISO14443A | 144 byte | No | Read/Write |
| ICODE SLIX | ISO15693 | 1024 bits | Yes | Read/Write |
| Available 860-960MHz Chip | ||||
| Alien H3 | ISO18000-6C | 512 bits | Yes | Read/Write |
| Other chips are also available. | ||||
| Ntag are registered trademarks of and are used under license.ICODE are registered trademarks of and are used under license.MF and MF Classic are trademarks of MF and MF Ultralight are registered trademarks of and are used under license.MF and MF Plus have registered trademarks of and are used under license. | ||||
Custom Sizes
Common Package
Note:
Volume
1000pcs/ 2000pcs/ 5000pcs in one roll,
10,000pcs/ 50,000pcs/ 100,000pcs per carton
Weight
About 2Kg for 1000 pcs
Carton Size
49*23*20 cm
49*23*26 cm
Special demands for packing available.
Applications
Available Applications:
Asset management, production line management, supply chain management, warehousing management, luggage tag，anti-counterfeiting management (tobacco, liquor, medicine), retailmanagement, vehicle management, etc.
