NFC & EPC Gen2 dual-frequency RFID NFC Sticker/Label

Product Code: xyt-271

Ask For Price

1 reviews | Write a review

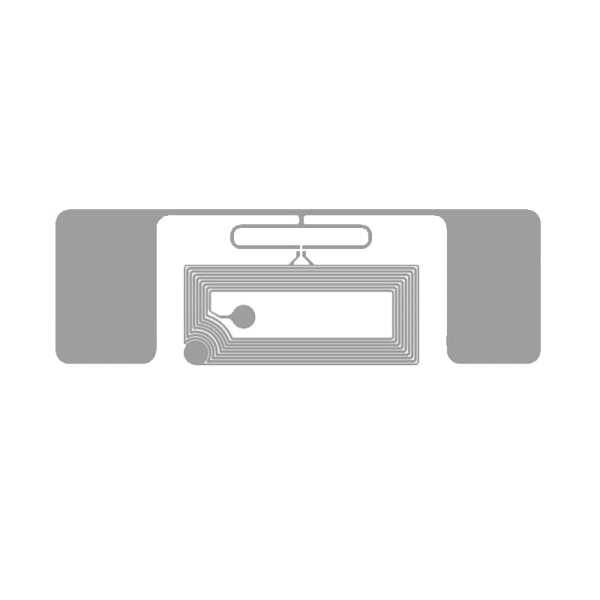

NFC & EPC Gen2 dual-frequency RFID NFC Sticker/Label

Basic Feature

EM4423 corresponds to the latest generation of EM Microelectronic contactless devices, bringing innovative features to the NFC and EPCTM worlds. The chip combines two functionalities on one single die, the EPC technology used for long-range application purposes and the NFC used to exchange data in a proximity range. Both protocols may share a common unique ID.

Specification:
IC	EM4423
Frequency	860-960MHz+13.56MHz
Material	Paper
Available Material	Soft PVC, PET
Available Antenna Size	7223mm,5725mm, 3048mm,8630mm etc
Operating Temperature	-25°C to 70°C / -13°F to 158°F
Available Craft	Logo/Number /QR Code / UID Printing , Data encoding ,Anti-Metal Epoxy Surface etc
Adhesive	Acrylic, water borne adhesive
Adhesive Usage Temperature	min. -20°C to 80°C / min. -4°F to 176°F
Qty/Roll	Mini 1000pcs per Roll
Core Size	76mm / 3“
Shelf Life: minimum of 2 years from the date of manufacture in	20°C / 68°F, 50% RH

AdvaNtage:

One-step NFC/EPC inlay manufacturing
Dual-interface memory access (NFC and/or EPC)
EPC for fast data collection & long range
NFC access to consumer data and secured access (e.g. digital signature for tag and product authenticity)
NFC field powering option for increased UHF performance and reading range
NFC access counter readable through EPC air interface
Enhanced privacy features including EPC Gen2V2 “UNTRACEABLE” command
Large User Data – more than 2Kbit
