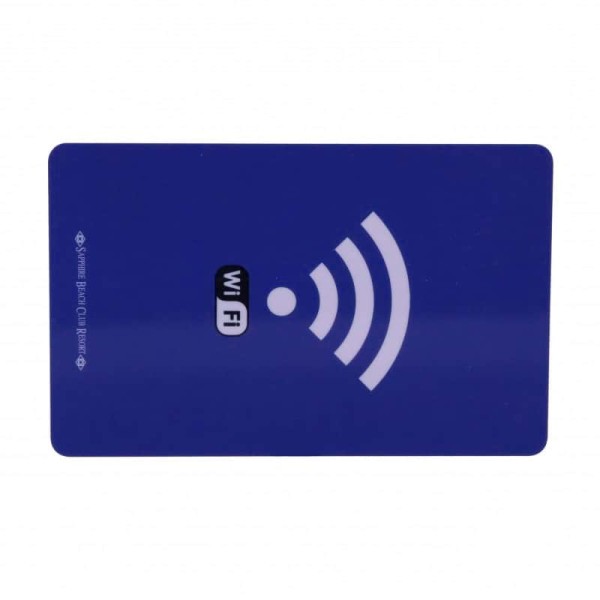

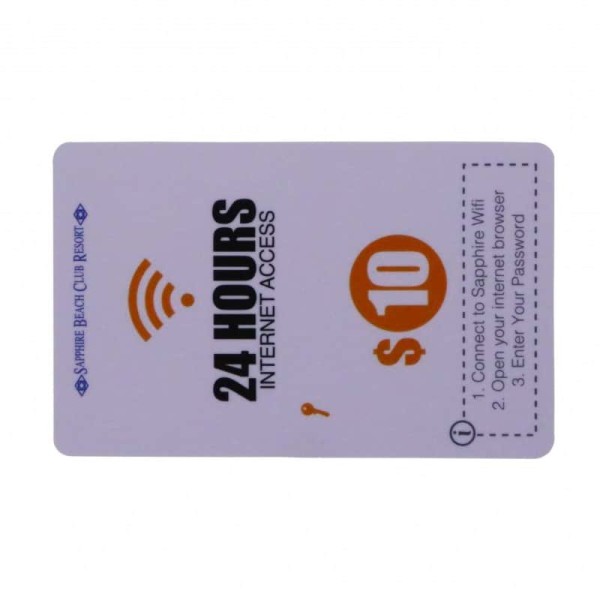

HF MF Ultralight C CR80 RFID Cards
HF MF Ultralight C CR80 RFID Cards
HF MF Ultralight C CR80 RFID Cards Descriptions:
HF MF Ultralight C CR80 RFID Cards are the general card with the international size standard, 85.5x54mm. Of course, we can also provide a customized size for you.
The intelligence card system has strong Encryption, and it is reflected in the structures of chips and reading styles. Intelligence cards own larger capacity, but reading and writing areas of the memory can be also arbitrarily selected.
Intelligence Card is made of silicon to store information, so advanced silicon manufacturing process can be fully guaranteed diamagnetic, electrostatic and various ray capability. Because of the small volume of silicon, which has an epoxy layer giving protection, and outside with the protection of the PCB and the substrate, the abilities of resistance upon mechanical damage and chemical damage are strong.
Parameters | |
Material | ABS, PVC, PET |
Size | CR80 |
Chip | MF Ultralight C |
Printing Options | Full-color offset printing, Silk-screen printing, etc. |
Surfaces | Frosted, Glossy, Matte Finishing |
Crafts Available | Barcode, Scratch off panel, Signature panel, Spray number, Laser number, Embossing, etc. |
Shipping Details | Generally, 3 days for DHL/FedEx/UPS, 10 days for air shipping, 18 days for sea shipping. |
Payment Terms | TT, PayPal, WEST UNION, L/C |
Common Chip Types | Protocol | Capacity | Anti-collision | Function |
Available 125KHz Chip | ||||
TK4100 | / | 64 bits | No | Read Only |
EM4200 | / | 128 bits | No | Read Only |
EM4305 | / | 512 bits | No | Read/Write |
T5577 | / | 330 bits | No | Read/Write |
Available 13.56MHz Chip | ||||
Ntag213 | ISO14443A | 180 byte | No | Read/Write |
Ntag215 | ISO14443A | 540 byte | No | Read/Write |
Ntag216 | ISO14443A | 924 byte | No | Read/Write |
MF Classic 1K | ISO14443A | 1KB | No | Read/Write |
MF Classic 4K | ISO14443A | 4KB | No | Read/Write |
MF Plus S 1K | ISO14443A | 2KB/4KB | No | Read/Write |
MF Ultralight EV1 | ISO14443A | 48 byte | No | Read/Write |
MF Ultralight C | ISO14443A | 144 byte | No | Read/Write |
ICODE SLIX | ISO15693 | 1024 bits | Yes | Read/Write |
Available 860-960MHz Chip | ||||
Alien H3 | ISO18000-6C | 512 bits | Yes | Read/Write |
Other chips are also available. | ||||
Ntag are registered trademarks of and are used under license.ICODE are registered trademarks of and are used under license.MF and MF Classic are trademarks of MF and MF Ultralight are registered trademarks of and are used under license.MF and MF Plus have registered trademarks of and are used under license. |
Common Package
Note:
Volume
Chip Card: 200pcs cards with chips in one box, 2000/3000pcs per carton
Common Card: 250pcs per box, 2500/3000pcs per carton
Inkjet White Card: 230pcs per box, 3450pcs per carton
Weight
Chip Card: 6.5KG for 1000pcs
Common Card: 6.0KG for 1000pcs
Carton Size
49*23*16CM (for 2000/2500pcs)
49*23*20CM (for 3000pcs)
Special demands for packing available.
Test Color
The high precision color difference meter is used to ensure the consistency of the finished product and the sample.
Chip Specifications | |
Memory Capacity | 64/128/512/1024bit,1k/4kBytes |
Chip Style | MF Ultralight, MF Ultralight C, MF S50, MF S70,MF1 PLUS2K/4K,ICODE SLI/SLI-S/SLI-L/SLIX,etc |
Frequency Range | LF/HF/UHF |
General Specifications | |
Available Colors | PVC/ABS/PET/Paper |
Size Numeric | CR80 or Customized |
Work Temperature | Barcode/ Number printing,Magetic Stripe,Signature Panel,Encoding,etc |
