Android 6.0 8000 mAh battery UHF handheld phone reader With 4G, Wi-Fi, Bluetooth

Email: marketing@asiarfid.com Call us: +(86) 755 2697 9016

Android 6.0 8000 mAh battery UHF handheld phone reader With 4G, Wi-Fi, Bluetooth

Product Code: xyt-285

Ask For Price

1 reviews | Write a review

Android 6.0 8000 mAh battery UHF handheld phone reader With 4G, Wi-Fi, Bluetooth

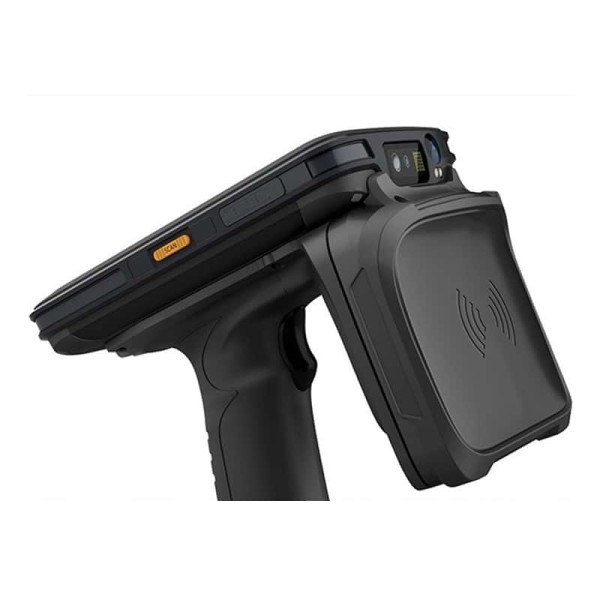

XYT82 is an Android rugged mobile computer. It features a quad-core processor, 8000 mAh battery and superb UHF RFID capability. It can be equipped with R2000 linearly or circularly polarized antenna. That it can read tags in bulk from long distances enables this single device to be deployed in asset management, retail, warehousing, fleet management, etc.

Specification
Physical Characteristics
Dimensions	164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight	654g / 23.07oz
Display	5.2'' IPS FHD 1920x1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves, and wet hands supported
Power	Li-ion, rechargeable, 8000mAh
Expansion Slot	1 slot for SIM card, 1 slot for SIM or TF card
Interfaces	USB 2.0 Type-C, OTG
Audio	speaker, 2 microphones
Keypad	4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key/td>
Sensors	Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
Performance
CPU	Cortex-A53 Quad-core 1.3GHz
RAM+ROM	2GB+16GB
Expansion	Supports up to 32 GB Micro SD card
User Environment
Operating Temp	14oF to 122oF / -10oC to 50oC
Storage Temp	-40oF to 158oF / -40oC to 70oC
Humidity	5%RH - 95%RH no condensing/td>
Drop Specification	Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.6ft falls at room temperature
Sealing	Host IP65
ESD	±8KV air discharge, ±4KV conductive discharge
Developing Environment
Operating System	Android 6.0
SDK	Software Development Kit
Language	Java
Tool	Eclipse / Android Studio
Communication
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN(Europe)	2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America)	2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17
WWAN(China)	2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41
WWAN(Others)	Depending on the country's ISP
Bluetooth	Bluetooth 4.0, BLE
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
Data Collection
Camera	13MP autofocus camera with flash
Frequency	865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Linear polarization(1.8dBi); circular polarization(4dBi)
Power	1W (30dBm, +5dBm to +33dBm adjustable)
R/W range	＞6m ；＞10m
Reading rate	＞200 tags/s
(circular polarization)	*Ranges and rates depend on tags and environment
NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4cm
Barcode Scanning (Optional)
1D Linear Scanner	Honeywell N4313, UPC/EAN, Code128, Code39, Code93, Code11,
1D Symbologies	Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner	Zebra SE4710/Zebra SE4750MR/Honeywell N6603, etc. PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,
2D Symbologies	MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Iris (optional)
Rate
Range	20-40cm
FAR	1/10000000
